Red and Infrared Light Therapy Pad (660nm and 850nm - 60W)

What Is a Red & Infrared Light Therapy Pad?

A red and infrared light therapy pad is a flexible, wearable device that delivers 660nm red light and 850nm near-infrared light to a specific area of the body. It is built for focused use on the back, shoulders, waist, joints, arms, or abdomen — areas where a full-body mat provides more coverage than needed. This version measures 87 × 40cm with 406 LEDs, runs on an AU plug for standard Australian outlets, and is rated at 60W actual output across a dense 3-in-1 LED chip configuration.

How Does It Work?

Each LED contains three chips: one 660nm red light chip and two 850nm near-infrared chips, totalling 1,218 chips across the 87 × 40cm surface. The 660nm wavelength is absorbed primarily at the skin and superficial tissue layer, while the 850nm near-infrared wavelength has a longer wavelength and penetrates further into deeper tissue — this difference in penetration depth is a property of the wavelengths themselves. Three operating modes allow independent use of each wavelength (660nm only, 850nm only) or a combined mode, alongside pulse settings of 10Hz and 40Hz plus constant light output. Brightness is adjustable across five levels, and the built-in timer runs for 5, 10, 20, or 30 minutes with automatic shut-off at the 30-minute mark.

Who Is This For?

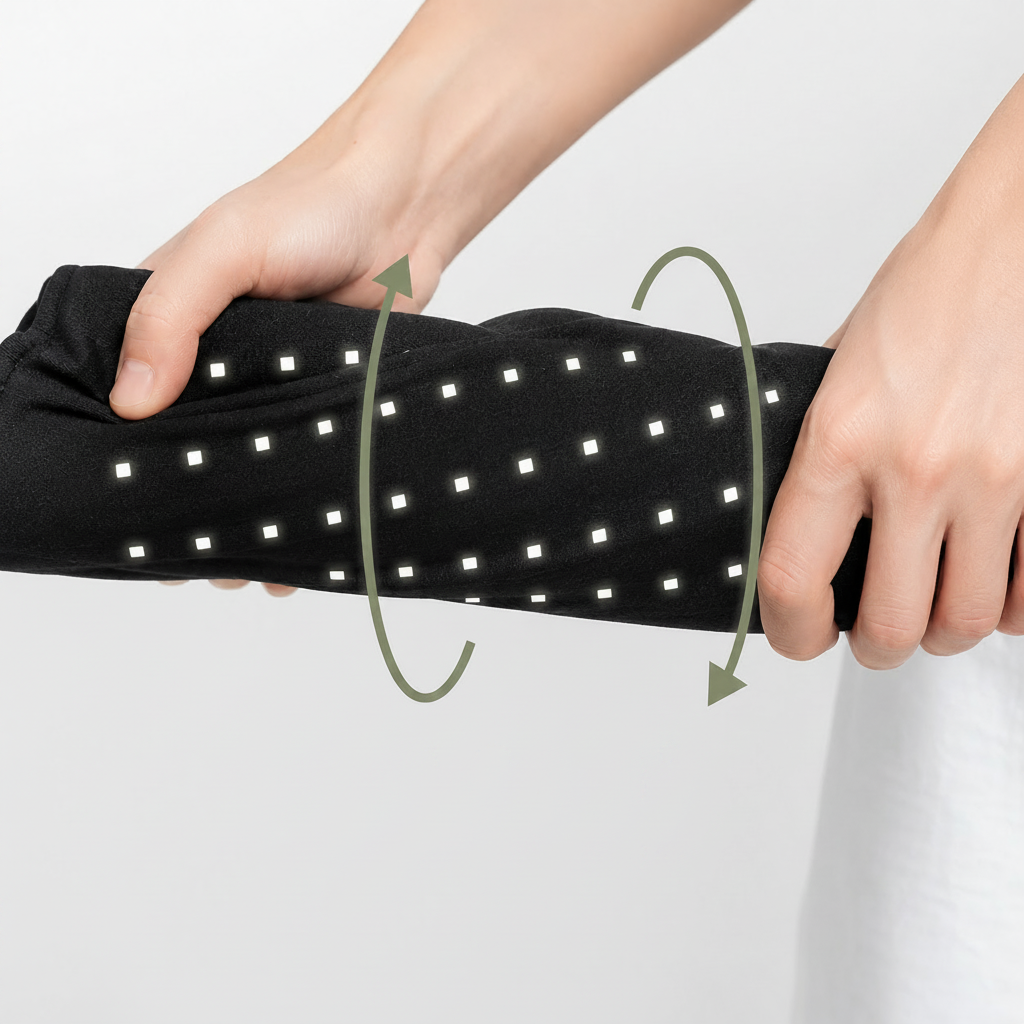

This pad suits adults who want targeted light therapy on a defined area of the body, rather than a full-body session. The flexible fabric construction bends up to 120° and wraps around curved areas such as the shoulder, waist, or knee. A stretchy strap (63 × 12cm) holds the pad in place hands-free during use, elastic enough to secure around the waist, abdomen, or shoulders without manual contact. For whole-body coverage instead of a single area, see the Full-Body Red & Infrared Therapy Mat.

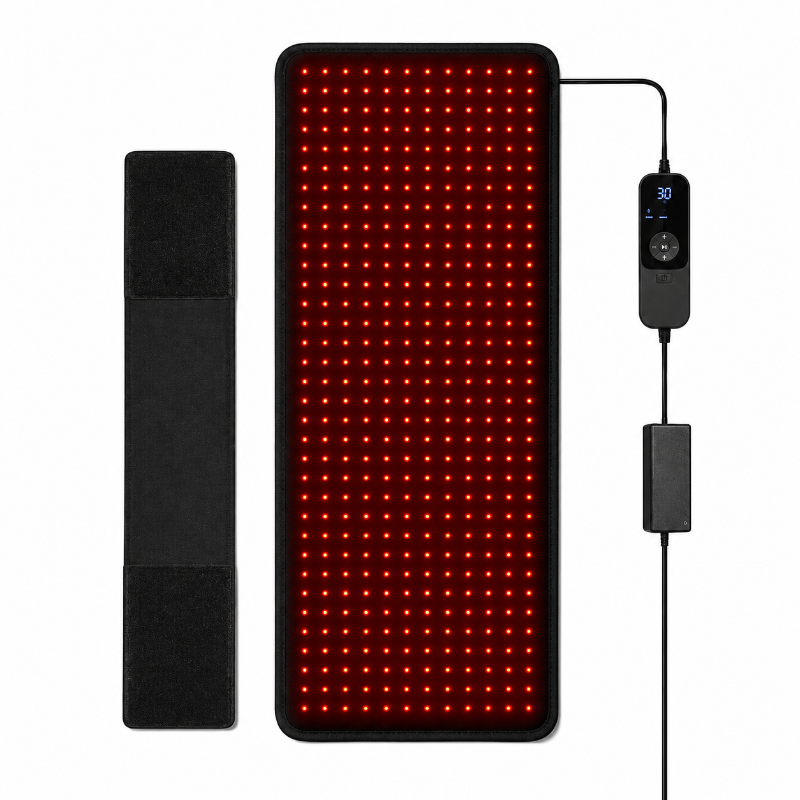

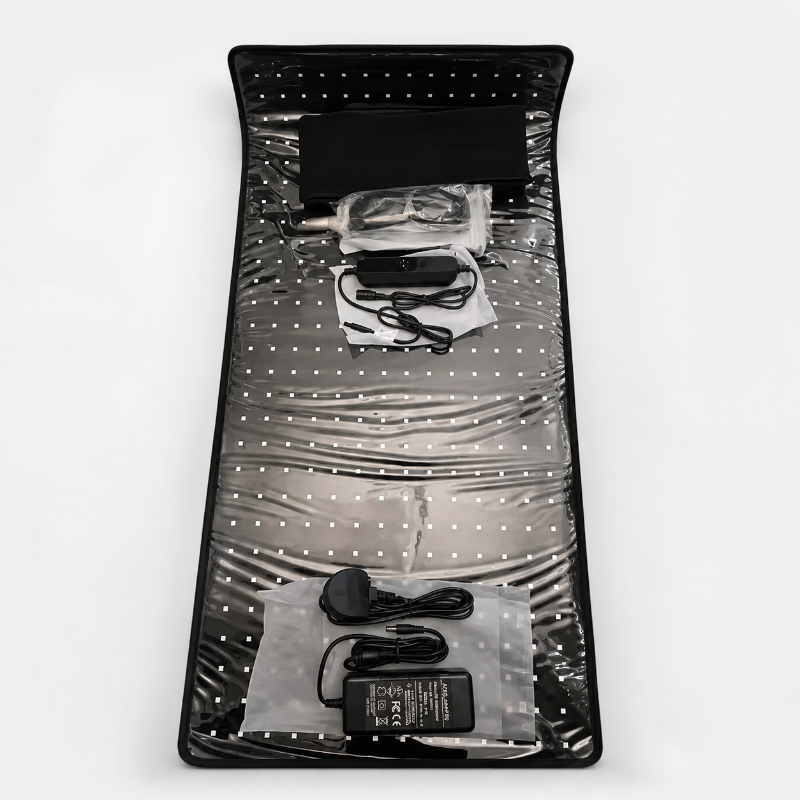

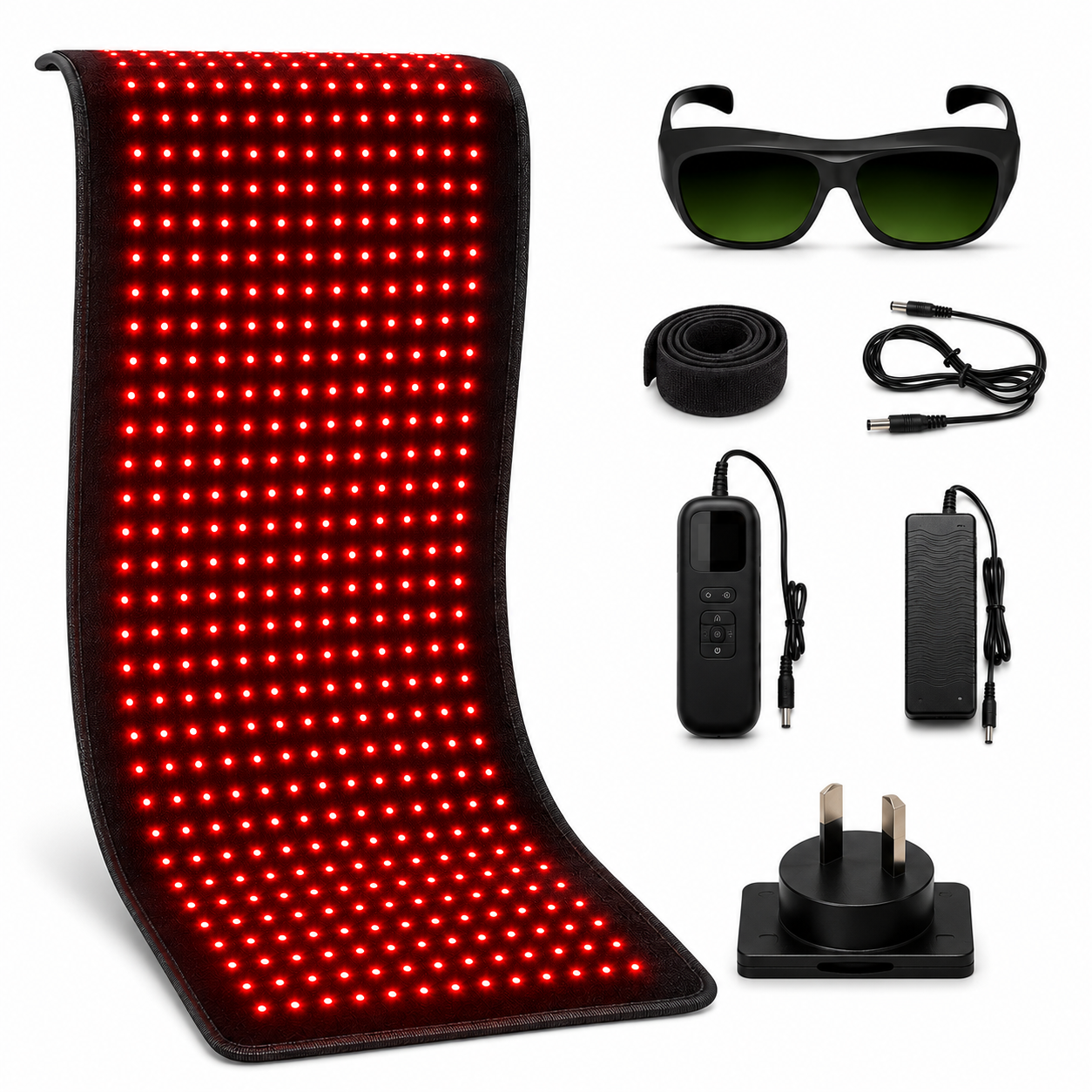

What's Included

• Therapy pad (87 × 40cm, 406 LED)
• Stretchy strap
• Controller
• Power cord with AU plug
• Protective glasses
• Dustproof and waterproof cover

Technical Specifications

• Size: 87 × 40cm (34.3 × 15.7 in)
• LEDs: 406 · Total chips: 1,218 (406 × 660nm + 812 × 850nm)
• Actual output: 60W · Chip configuration: 3-in-1
• Wavelengths: 660nm + 850nm
• Modes: 850nm only / 660nm only / combined
• Pulse: 10Hz / 40Hz / constant
• Brightness: 5 levels (P1–P5)
• Timer: 5 / 10 / 20 / 30 min, auto-off at 30 min
• Stretchy strap: 63 × 12cm
• Surface material: fabric · Flexibility: up to 120°
• Certifications: CE, FCC
• Plug type: AU

This product is not intended to diagnose, treat, cure, or prevent any disease. Individual results vary. If you have a photosensitive condition or take medication that increases light sensitivity, consult a healthcare professional before use. Do not use directly over eyes without protective glasses.
