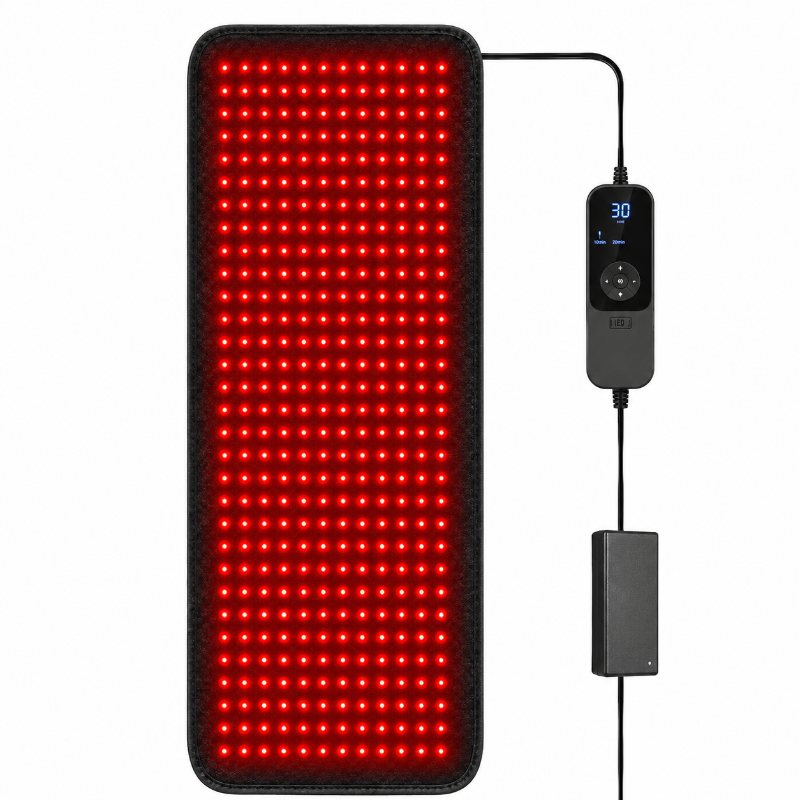

Red & Infrared Light Therapy Pad — 660nm + 850nm, 60W, Two Sizes

A red and infrared light therapy pad is a flexible, wearable device that delivers targeted 660nm red light and 850nm near-infrared light to a specific area of the body. What is this pad used for? It is designed for focused use on the back, shoulders, waist, joints, arms, or abdomen — areas where a full-body mat provides more coverage than needed, or where direct contact and wrap-around fit improve results. At 60W actual output across a dense 3-in-1 LED chip configuration, this pad delivers the same wavelength science as a clinical panel in a format that conforms to the body and stays in place hands-free.

How does a red and infrared light therapy pad work? Each LED contains three chips: one 660nm red light chip and two 850nm near-infrared chips. The 360 LED version contains 1,080 total chips across a 30 × 80 cm surface. The 406 LED version contains 1,218 total chips across a 40 × 87 cm surface — wider coverage for larger target areas such as the full lower back or both shoulders simultaneously. The 660nm wavelength is absorbed at skin and circulatory tissue level. The 850nm near-infrared wavelength penetrates deeper into muscle, joint, and connective tissue. Three operating modes allow independent use of each wavelength or a combined mode. Pulse frequencies of 10Hz and 40Hz are available alongside constant light output.

Who is this for? This pad is suited for adults managing recurring tension or discomfort in a defined area, or those who want targeted light therapy without committing to a full-body session. The flexible fabric construction bends up to 120° and wraps around curved body areas. Stretchy straps (63 × 12 cm / 24.8 × 4.7 in) hold it in place without requiring manual contact during use — elastic enough to wrap around the waist, abdomen, or shoulders. For whole-body coverage, see the Full-Body Infrared Therapy Mat.

Which size should I choose?

The 360 LED version (30 × 80 cm) suits targeted use on a single area: lower back, one shoulder, waist, or arms. The 406 LED version (40 × 87 cm) provides a wider surface, better suited for the full back, both shoulders together, or the upper body. Both versions operate at 60W and share identical modes, brightness levels, and package contents.

What's included

Therapy pad · Stretchy straps · Controller · Power cord · Multi-plug adaptor (AU, EU, UK, US) · Protective glasses · Dustproof and waterproof cover

Technical specifications

360 LED version: 360 LEDs · 1,080 total chips (360 × 660nm + 720 × 850nm) · 30 × 80 cm (11.8 × 31.5 in)
406 LED version: 406 LEDs · 1,218 total chips (406 × 660nm + 812 × 850nm) · 40 × 87 cm (15.7 × 34.3 in)
Stretchy strap: 63 × 12 cm (24.8 × 4.7 in), highly elastic · Both versions: 60W actual output · Chip configuration: 3-in-1 · Wavelengths: 660nm + 850nm · Modes: 850nm only / 660nm only / combined · Pulse: 10Hz / 40Hz / constant · Brightness: 5 levels (P1–P5) · Timer: 5 / 10 / 20 / 30 min, auto-off at 30 min · Surface material: fabric · Flexibility: up to 120° · Certifications: CE, FCC · Plug types: AU, EU, UK, US (adaptor included)

This product is not intended to diagnose, treat, cure, or prevent any disease. Individual results vary. If you have a photosensitive condition or take medication that increases light sensitivity, consult a healthcare professional before use. Do not use directly over eyes without protective glasses.
